手持式激光测距仪
FG LRF1000手持式激光测距仪,1000码测程,配置直线视界距离与仰俯角组合LOS模式、水平方位距HCD模式、移动目标扫描SCAN模式功能

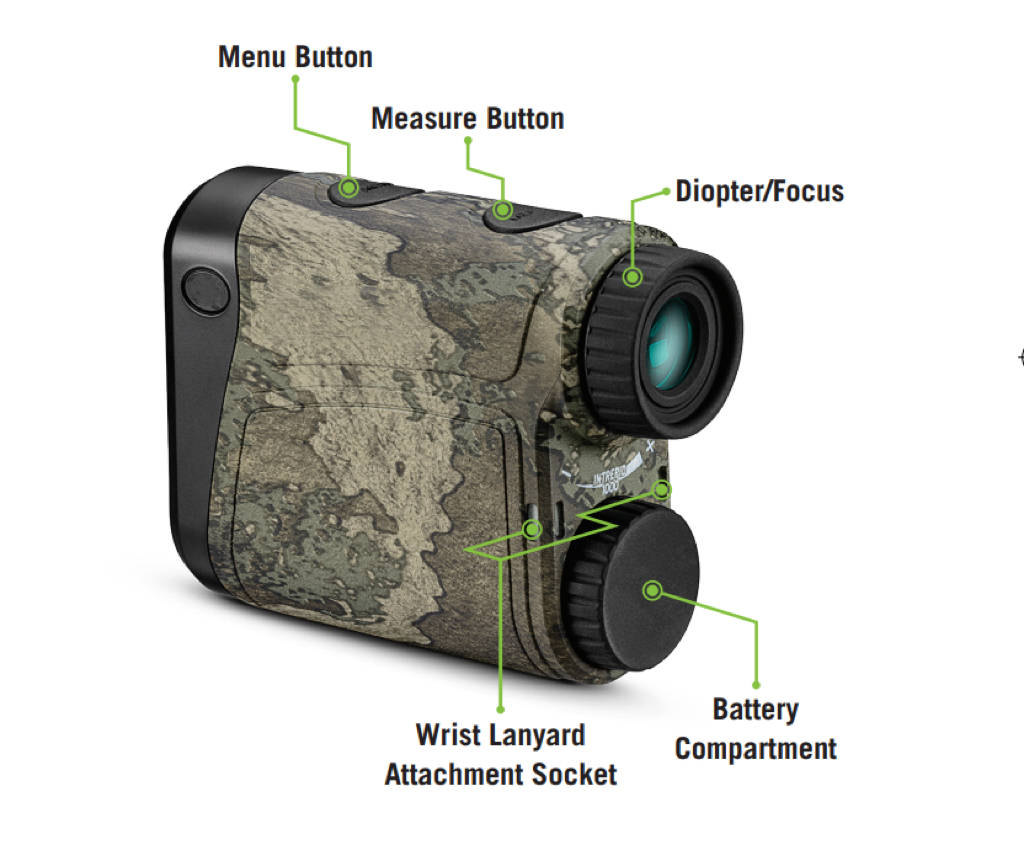

FGLRF1000激光测距仪是一款测量距离范围为5码到1000码的具备野外搜索、观察、瞄准、测量、显示和记录等多功能的手持式测量仪器。它由望远瞄准、激光发射和物光反射三组光学系统,对应的激光发射驱动、探测电路和显示驱动电路,以及抗震、防水和适用低温的结构组成。能够在全天候条件下,实现快速测量、显示和存储距离、高程和方位角等数据信息。

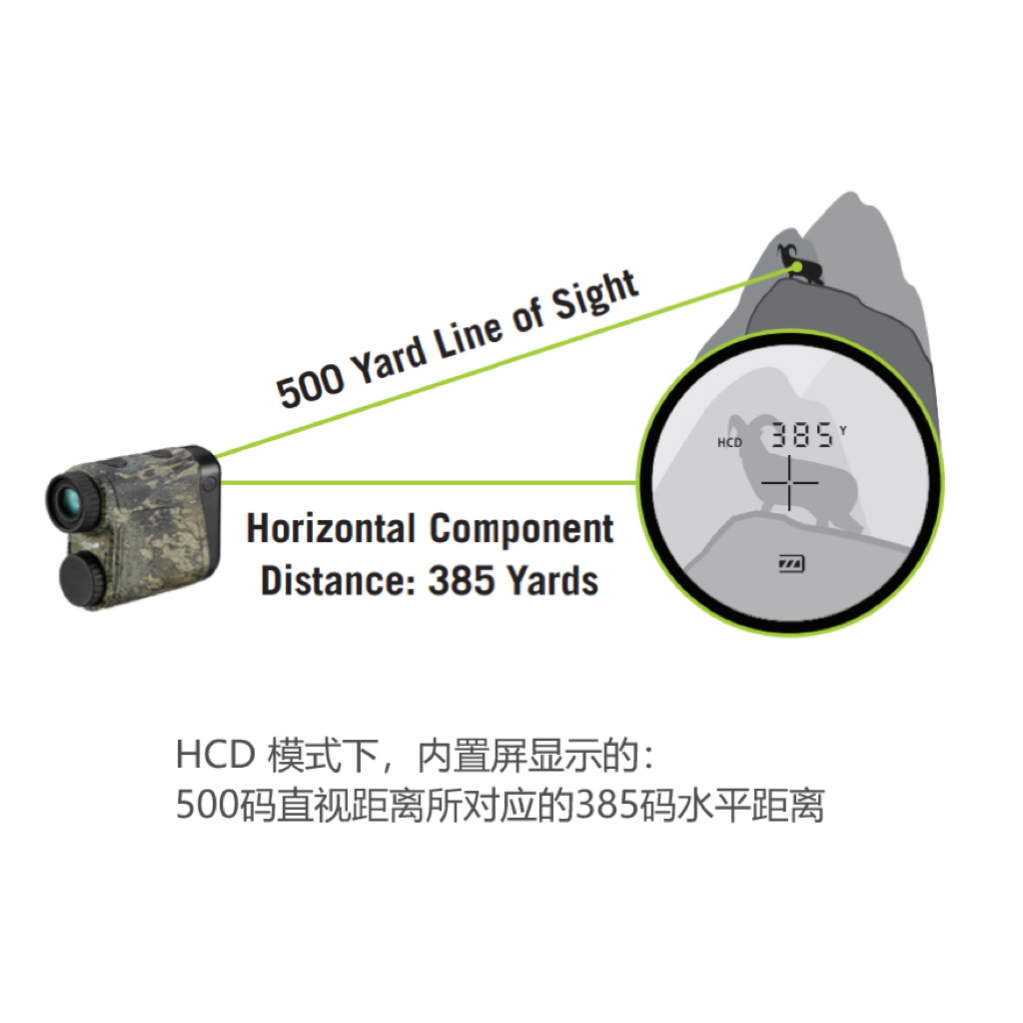

        FGLRF1000激光测距仪是一款配备仰俯角定位功能的测距仪器,适用于狩猎、高尔夫球和地形测量等户外运动和测绘,其LOS模式能够快速提供观察者与目标之间的直线视界距离;其HCD模式为射手提供目标位置的水平距离和程高值,便于射手设置射击仰角;该测距仪还配备SCAN模式,通过扫描对移动目标测距。

       该激光测距仪通过测量光脉冲从发射器到目标和从目标反射回到接收器所传输的时间来获得距离值,是一款用于开放空间的光收发模块,它由光发射模组、接收模组、控制和显示系统组成。

       Future Optics' laser rangefinder is an extremely effective angle-compensated laser rangefinder for outdoor sports and field measurement, like hunting, golfing and topographic surveying. Using the primary HCD (Horizontal Component Distance) Mode, it provides key angle compensated range information required by the vast majority of shooters and measurers in a simple, quick to read display. Secondly, this rangefinder provides a LOS (Line of Sight) Mode. The third, user can utilize the Scan Feature to range moving targets.


产品特点/Features

•精密光学系统/ HD optical system

• 高阈值抗损镀膜/Ultra-hard lens coatings

• 高灵敏度探测器/High sensitive receiving

• 防水设计/Waterproof design

• 防冲击设计/Shockproof design

• 符合15/FCC/Pursuant to part 15 of the FCC Rules.


产品用途/Applications

• 野外地形测绘/Topographic surveying

• 户外狩猎/Hunting

• 高尔夫球运动/Golfing



技术指标/Technical specifications

主要参数/Parameter

FG   LRF1000

放大倍率/Magnification

6X

最大测程/Max Reflective Range

Up to 1000 yds. (914m)

物镜直径/Objective Diameter

20mm

发射孔径/Transmission Diameter

18mm

接收孔径/Receiving Diameter

20mm

最短测程/Minimum Range

5 yds. (4.5m)

角度读数/Maximum Angle Reading

± 60°

测量精度/Accuracy

± 2 yd @ 1000 yds

视场角/Field of View

Angular 6.5°

测距时间/Range Acquisition Time

<0.8 sec (<100yds)

内置显示器类型/Display Type

LCD

出瞳距离/Eye Relief

15mm

适配电池类型/Battery Type

CR2

电池使用寿命/Battery Life

~5000 Range Cycles

仪器尺寸/Dimensions

96x74x36.5mm

仪器重量/Weight

155.9g

工作温度/Operation Temperature

-10°C   to + 50℃

存储温度/Storage Temperature

-20°C   to + 65℃
